Description

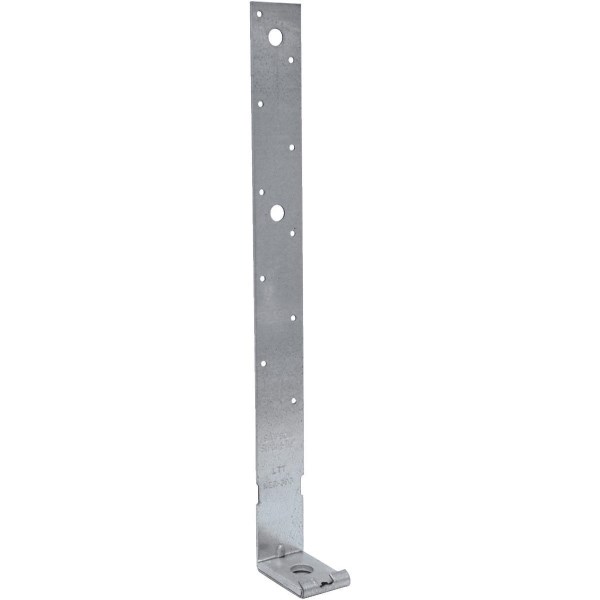

The Simpson Strong-Tie LTT is a solution for resisting tension loads when used to attach wood to concrete or masonry walls. This light tension tie is designed for horizontal purlin applications and may also be used for vertical holdown applications. For LTT tension tie applications with unreinforced concrete masonry, 3/4-in. post-installed anchor bolts are commonly used. The LTTP2 model, for wood joist attachments, features an extruded anchor bolt hole to accommodate 1/2-in., 5/8-in. and 3/4-in. bolt diameters. It also features two separate nailing patterns: obround holes spaced 3 in. apart for I-joist purlins and square holes spaced to accommodate the narrow face of 2x solid-sawn purlins. The LTTP2 may be installed vertically on the wide face of a minimum 2×4 stud for holdown applications and can be fastened with nails or Strong-Drive SD Connector screws.
