Stove Pipe Insulated Stove Pipe
-
$14.25Storm collar designed specifically for IHP products woodburning fireplace 8″ pipe and accessories. Storm collars fit on the round chimney pipe just above the roof flashing. The upper edge should be waterproofed with plastic sealer to prevent any water from leaking between the storm collar and chimney pipe.
-

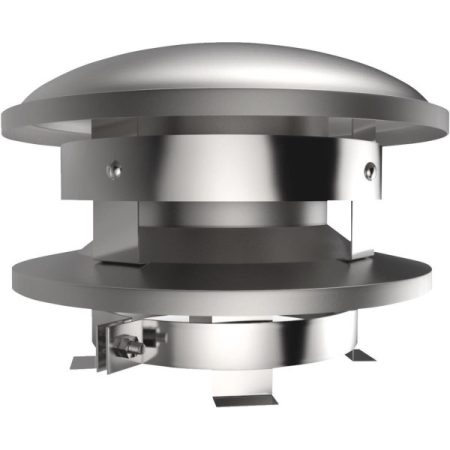

$67.50Designed with a dome to exclude rain and leaves and a lower skirt to deflect wind for proper chimney draft. The three legs slide down over the outside of the chimney pipe. A cinch band is then positioned over the legs and tightened to hold the top firmly in place.…
-
$145.00Elbow kit includes two elbows, 2 locking bands and 1 interior re-support. This kit allows the chimney to be offset in a way to avoid obstructions that may occur prior to exiting the roof. UL standard 103 prohibits angles greater than 30 degrees. The interior resupport provides a firm attachment…
-
$200.00Elbow kit includes two elbows, 2 locking bands and 1 interior re-support. This kit allows the chimney to be offset in a way to avoid obstructions that may occur prior to exiting the roof. UL standard 103 prohibits angles greater than 30 degrees. The interior resupport provides a firm attachment…
-
$250.00Elbow kit includes two elbows, 2 locking bands and 1 interior re-support. This kit allows the chimney to be offset in a way to avoid obstructions that may occur prior to exiting the roof. UL standard 103 prohibits angles greater than 30 degrees. The interior resupport provides a firm attachment…
-
$22.50Adjustable for various roof pitches from 0/12 to 6/12. Covers 2 In. space around chimney where pipe passes through a sloped ceiling for an attractive finish. Matte black finish. No assembly required.
-
$46.50Used wherever a ceiling support, finish support, or firestop is installed below an open attic. Required to guard against the hazard of blown-in or blanket insulation filling any framed opening or contacting the chimney and possible storage of combustibles against the chimney. Usable for new and retrofit installations. Half cylinder…
-
$75.00For use when installing a Model SSII chimney in an A-frame, mobile home, or in a ceiling under a narrow section of roof. It provides a finished installation at a ceiling level and will support up to 20′ of 6″ or 8″ diameter chimney. The part also can be used…
-
$67.50With proper framing, both ceiling supports assure at least 2″ minimum clearance to combustibles at the support level and can carry up to 50′ of vertical chimney height. Square trim plate. Matte black finish.
-
$12.00Round collar fits over lower end of suspended insulated chimney pipe to provide finished appearance. Used to attach T-DSA Dripless Smoke Pipe Adapter part to lower end of chimney or to insulated tee. Matte black finish.
-
$9.50Designed to fit on the round chimney pipe just above the roof flashing.The upper edge should be waterproofed with plastic sealer to prevent any water from leaking between the storm collar and chimney pipe. Part is tightened with screws or tabs after proper positioning. 5-1/2″ H.
-
$41.50(DSAC)-with coupler. For use in new installations, this part can be installed by twist-locking the coupler on the DSAC into the first section of Model SSII type HT chimney pipe. Used to connect either model DS smoke pipe or single wall stove pipe to SSII type HT insulated chimney pipe.…
-
$35.00(DSA)-without coupler. For use in retrofit installations, this part can be installed from below with a finish support package and secured with screws. Used to connect either model DS smoke pipe or single wall stove pipe to SSII type HT insulated chimney pipe. The part is designed to slip inside…
-
$65.00Can be used whenever there is a need to stabilize the chimney above the roof level. The purpose of the bracing is to hold the chimney against wind load and to prevent damage from static and sliding snow. Up to 4′ above the roof requires no bracing. From 5′ to…
-
$95.00For freestanding fireplaces and open cathedral ceiling installations. Fits all roof pitches and requires only simple framing. Mounts easily onto top of roof through opening that allows 2″ clearance. Maximum length of chimney which can be suspended below is 20′. Maximum total length is 30′. The Roof Support Kit (RSK)…
-
$19.00Used along wall to provide for 2 In. clearance and assure stability. Also useful for suspending offsets. Required at 8 Ft. or closer intervals to stabilize the chimney, wherever it is supported along a vertical wall. Actual band diameter is 8 In. to allow for 2 In. clearance on 6…
