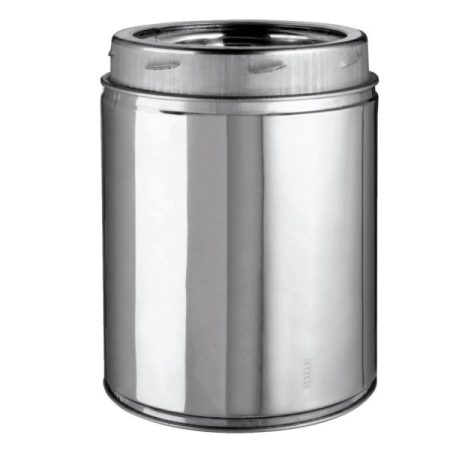

$44.00Stainless steel outer casing and inner liner. Double-wall pipe with solid pack insulation. Tested to withstand 2100 F (degree Fahrenheit). UL (Underwriters’ Laboratories) listed. This test helps to prevent product damage or structural hazard during brief periods of this excessive chimney temperature. Normal temperature is 1000 F. Pipe Data: Minimum…
-

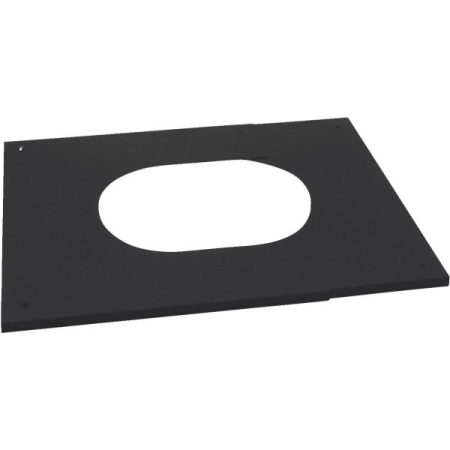

$30.00Adjustable for various roof pitches from 0/12 to 6/12. Covers 2 In. space around chimney where pipe passes through a sloped ceiling for an attractive finish. Matte black finish. No assembly required.
-
$60.00Used wherever a ceiling support, finish support, or firestop is installed below an open attic. Required to guard against the hazard of blown-in or blanket insulation filling any framed opening or contacting the chimney and possible storage of combustibles against the chimney. Usable for new and retrofit installations. Half cylinder…
-
$100.00For use when installing a Model SSII chimney in an A-frame, mobile home, or in a ceiling under a narrow section of roof. It provides a finished installation at a ceiling level and will support up to 20′ of 6″ or 8″ diameter chimney. The part also can be used…
-

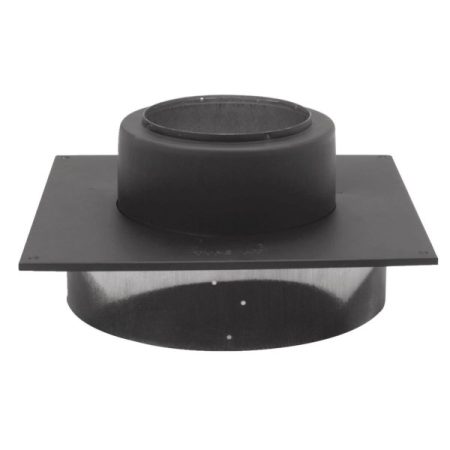

$77.50With proper framing, both ceiling supports assure at least 2″ minimum clearance to combustibles at the support level and can carry up to 50′ of vertical chimney height. Square trim plate. Matte black finish.
-

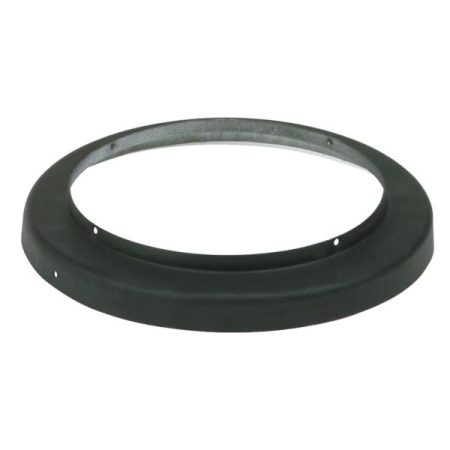

$19.00Round collar fits over lower end of suspended insulated chimney pipe to provide finished appearance. Used to attach T-DSA Dripless Smoke Pipe Adapter part to lower end of chimney or to insulated tee. Matte black finish.
-
$11.50Designed to fit on the round chimney pipe just above the roof flashing.The upper edge should be waterproofed with plastic sealer to prevent any water from leaking between the storm collar and chimney pipe. Part is tightened with screws or tabs after proper positioning. 5-1/2″ H.
-

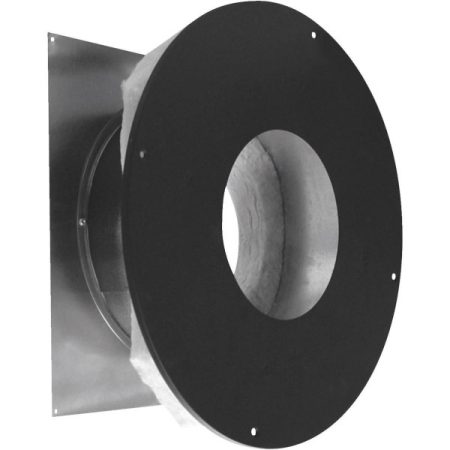

$45.00Installs quickly and eliminates the need for using individual firestops. The round shielding acts as a radiation shield and provides the required 2″ air space clearance to combustibles. The 2 sections telescope to accommodate 6″ to 11″ wall thickness.
-

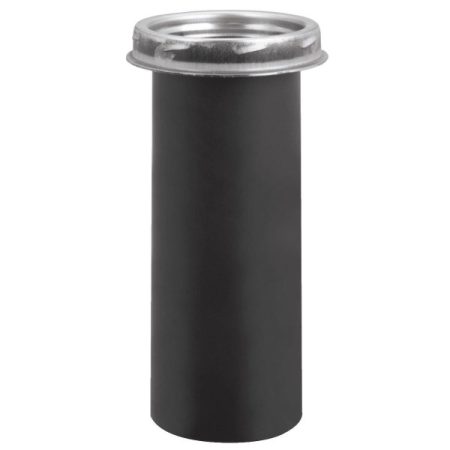

$50.00(DSAC)-with coupler. For use in new installations, this part can be installed by twist-locking the coupler on the DSAC into the first section of Model SSII type HT chimney pipe. Used to connect either model DS smoke pipe or single wall stove pipe to SSII type HT insulated chimney pipe.…
-
$36.50(DSA)-without coupler. For use in retrofit installations, this part can be installed from below with a finish support package and secured with screws. Used to connect either model DS smoke pipe or single wall stove pipe to SSII type HT insulated chimney pipe. The part is designed to slip inside…
-
$67.50Can be used whenever there is a need to stabilize the chimney above the roof level. The purpose of the bracing is to hold the chimney against wind load and to prevent damage from static and sliding snow. Up to 4′ above the roof requires no bracing. From 5′ to…
-

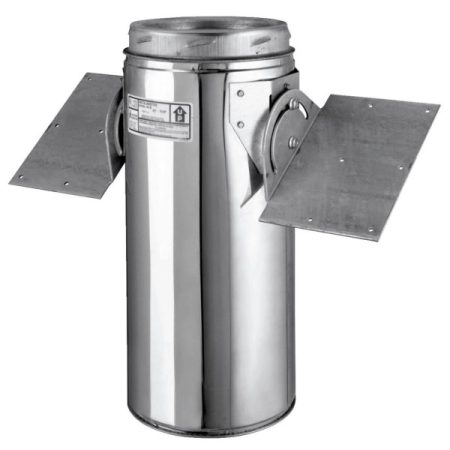

$110.00For freestanding fireplaces and open cathedral ceiling installations. Fits all roof pitches and requires only simple framing. Mounts easily onto top of roof through opening that allows 2″ clearance. Maximum length of chimney which can be suspended below is 20′. Maximum total length is 30′. The Roof Support Kit (RSK)…
-

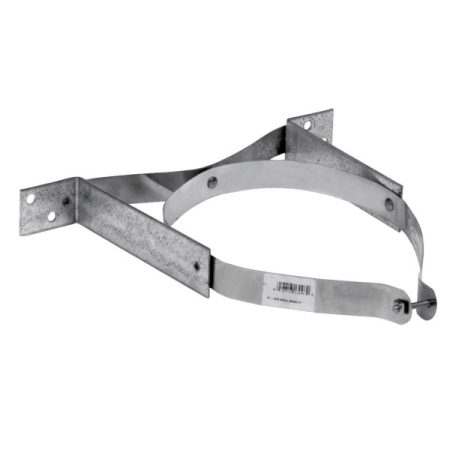

$26.50Used along wall to provide for 2 In. clearance and assure stability. Also useful for suspending offsets. Required at 8 Ft. or closer intervals to stabilize the chimney, wherever it is supported along a vertical wall. Actual band diameter is 10 In. to allow for 2 In. clearance on 8…
-

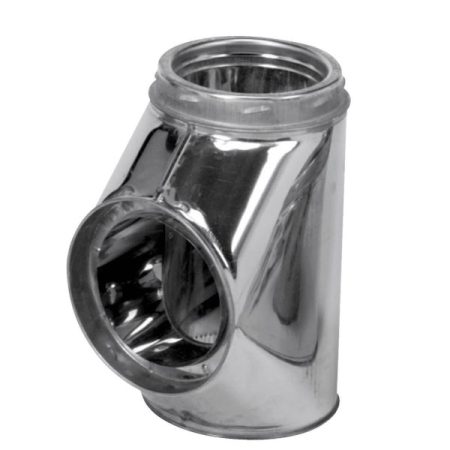

$165.00Used to start chimneys indoors or outdoors using a wall support assembly or masonry pier. Insulated tee cap included, removable for inspection and cleanout. Maximum height of chimney which can be supported by an insulated tee is 50′.
-

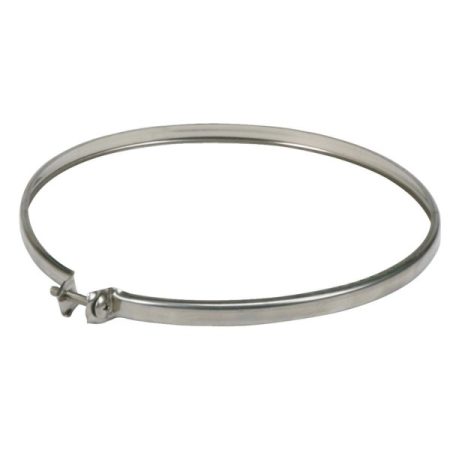

$11.75For increasing stability of Sure-Temp stainless steel insulated pipe. Inward flanges around the band fit into grooves at pipe joints. Reinforces joints of chimney suspended below support assemblies and prevents accidental uncoupling. Reinforces joints of chimney extending above roof and should be used at every joint. Stainless steel. Locking bands…
-

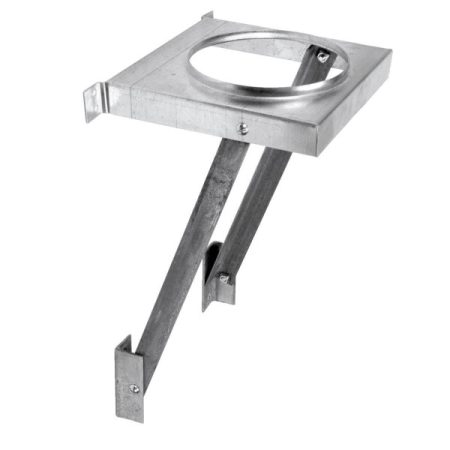

$75.00For use with the Insulated Tee as an interior or exterior support where the chimney has a lateral connection. Also useful where the pipe connection passes through a combustible interior or exterior wall. Braces may only be fastened to the wall below the plate for chimneys which penetrate through the…
