This repair kit contains enough parts to repair most two door sets. This kit will easily repair a 3/8 In. diameter hole system. It is best used on track systems with a width of 7/8 In. It includes enough parts to repair 1 set of bi-fold doors. It has 1…
This steel constructed bracket is for use on top tracks with a width of 5/8 In. Comes complete with retainer screw and features a 3/8 In. diameter pivot hole. Fits Acme and similar styled doors. The bracket is inserted into the track and as the screw is tightened, it forces…

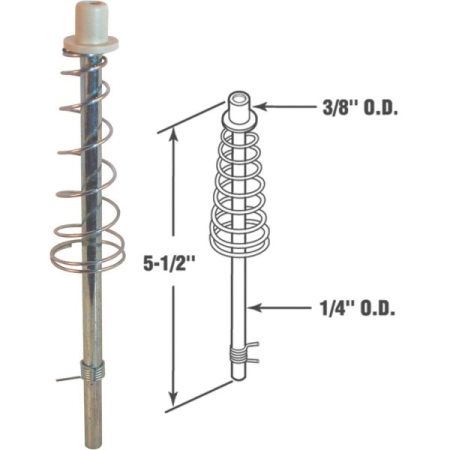

Spring loaded design locked into place by a spring locking clip. For bi-fold doors. The 1/4 In. diameter, 5-1/2 In. long steel rod has a cone compression spring, spring locking clip and 3/8 inch nylon cap. 1 per card.
This guide features a steel constructed base with nylon guide tips. It can adjust to fit either 3/4in. or 1-3/8in. thick doors. This style guide is used by Johnson Hardware. 5/8 In. W. x 3-15/16 In. L.
Bottom pivot guide for bi-fold doors. The 7/16 In. diameter nylon base houses a 3/16 In. pivot with a hex head nut for adjustment. Manufactured of nylon and steel. Fits 1 In. to 1-3/8 In. bi-fold doors to 30 lb. each. 2 per card.
15/16″ x 2-15/16″ steel bottom bracket with nylon holder complete with wrench. Stamped steel base with an adjustable self-lubricating nylon bushing. 1 per card.

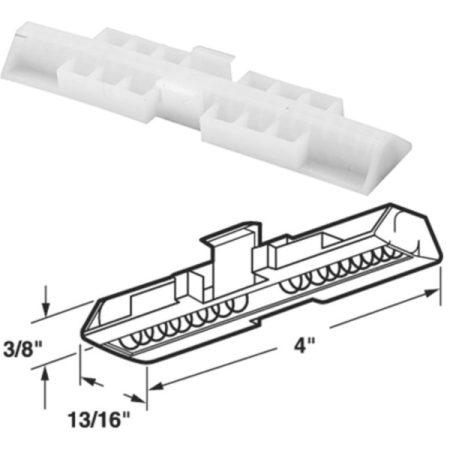

Bi-fold door snugger snaps into the center of the bi-fold door track. Manufactured of nylon and steel. The guide pin is inserted between the two springs in the nylon snugger housing. As the door is closed, the snugger slides in the track and makes contact with the opposite set of…
Square top pivot guide for bi-fold doors. Spring loaded, 3/4 In. square glide or guide in a 3/8 In. plastic base mounts on the top edge of a bi-fold door that is 1 In. to 1-3/8 In. thick. 1 pair per card.
5-1/4 In. steel top pin with 3/8 In. diameter nylon cap is a guide rod used in Benchmark bi-fold door systems and many others. Threaded with hex nut and washer for installation. 1 per card.
Top mount bi-fold door pivot and guide. Spring loaded pivot pin inserts into the pivot bracket above creating a top pivot point for the bi-fold door. Serves as a guide for the end door as it slides back and forth in the track. 1 per card.

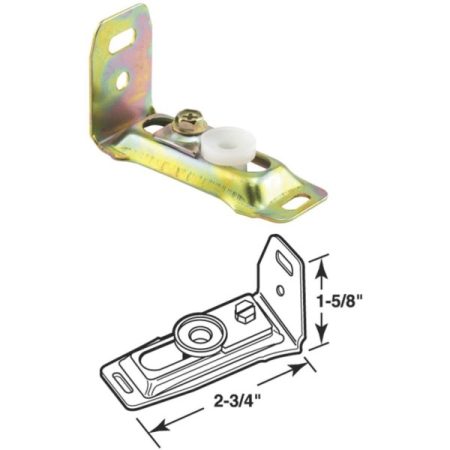

For use on bi-fold doors. Floor and jamb mounted bottom pivot bracket. Adjustable steel bracket with nylon bushing and wrench. Primarily used with Johnson hardware. 1 per card.
Combination set for bi-fold doors. Contains one pivot bracket that is floor and jamb mounted and has several adjustable positions for the pivot pin. Pivot base is nylon with a grooved cone shaped pivot bolt. 1 set per card.
